Controls
- 7 Scenes and Master Control
- 3 Relays - 10A (TV - 3 Rated)
- 1 High Power Relay - 16A (TV - 5 Rated)
- 2 Universal Dimmers - 16A (TV - 3 Rated)
- 2 Configurable Curtain Controllers
- 1 Fan Regulator (Capacitive - 4 Steps)
- 4 Input channels (Mechanical 2-way / sensors)
- Built-In IR Controller and blaster with 250 command storage

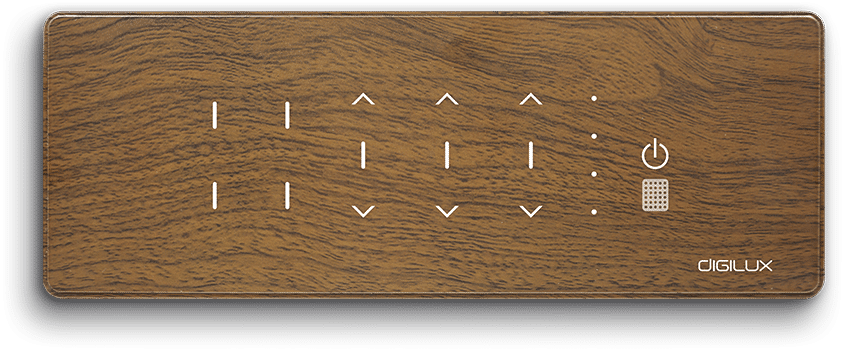

Crystal 8M - 4S2D1F
hidden
Controls
- 4 Scenes and Master Control
- 1 Relay - 10A (TV - 3 Rated)
- 1 High Power Relay - 16A (TV - 5 Rated)
- 1 Universal Dimmer - 16A (TV - 3 Rated)
- 2 Configurable Curtain Controllers
- 1 Fan Regulator (Capacitive - 4 Steps)
- 1 Input channel (Mechanical 2-way / sensors)
- Built-In IR Controller and blaster with 250 command storage

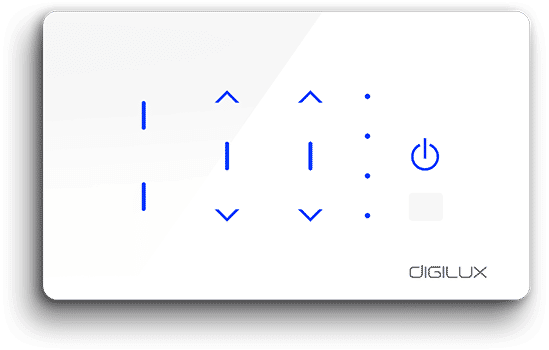

Crystal 4M - 2S1D1F
hidden
Controls
- 3 Scenes
- 2 Relays - 10A (TV - 3 Rated)
- 1 Universal Dimmer - 16A (TV - 3 Rated)
- 1 Configurable Curtain Controller
- 1 Input channel (Mechanical 2-way / sensors)
- Built-In IR Controller and blaster with 250 command storage
Crystal 2M - 6S
hidden
Crystal Series - On board Features
Lighting & Dimming
Smooth and flicker free universal dimming (Leading / Trailing edge) supporting upto 350W dimmable LED Load.
Hum-Free Fan Speed
Four steps hum free fan speed control.
Curtain Control
On Board configurable curtain controller.
AC / Geyser
16A(TV - 5 Rated) high power relay to support AC / Geyser.
2 Way / Wired Sensor Input
Input Channels for Mechanical 2-way / wired sensor connection.
hidden
Crystal Series - On board Features
Built-In IR Controller
Built in IR controller with learner (38kHz) for HVAC and multimedia controls.
Scenes & Scheduling
Scenario control, time scheduling and count down timer.
Gesture Control
(Select Models)
Supports gesture control.
Adaptive Backlit
Night mode function for LED backlit
Voice Control & Apps
Supports voice control (Google home and Alexa compatible).
hidden
Crystal Series - Connectivity
Wifi Mesh Technology
Wi-Fi mesh technology to reduce IP loads on routers.
CAN Bus (Hybrid Model)
Supports wired CAN Bus
BLE Connectivity
BLE support for 16 channel wireless intrusion sensor integration.
Z-Wave
Offered in Z-Wave+ series on select models with seamless Z-Wave platform support
Direct Cloud Connectivity
Works without gateway.
hidden
High On Performance
High Voltage Protection
Wide Operating voltage range 85-285 Vac. Over Voltage cut-off above 285 Vac. With-standing voltage upto 440 Vac.
Surge Protection
Upto 10kv surge protection.
Load Protection
(Select Models)
Load short circuit protection with auto diagnosis and notification.
In-Rush Protection
TV-3 / TV-5 Rated Relays to handle High In-Rush loads.
Energy Metering
(Select Models)
High precision energy metering.
